A single photograph can convey what pages of technical specifications cannot. Obstruction light images capture the essence of aviation safety—the brilliant white strobe cutting through daylight haze, the steady red glow against a midnight sky, the synchronized pattern of beacons outlining a towering structure. These images tell a visual story of engineering, vigilance, and the silent guardians that protect our skies. This article explores the power of obstruction light imagery and the quality that makes these visual moments possible.
The Language of Light – What Images Reveal
Every obstruction light image tells a story. Consider the classic dusk photograph: a communication tower against a purple-orange sky, its red lights standing out like beacons in the fading light. This image conveys height, location, and the transition between day and night operations. The pilot viewing this scene in real time would immediately recognize a structure requiring avoidance.
Daytime images reveal a different narrative. A white medium-intensity strobe flashing against a bright blue sky demonstrates the light's ability to compete with sunlight. The crispness of the flash, the uniformity of the beam, the absence of glare—these visual clues speak to the quality of the optical design.
Nighttime images are perhaps the most dramatic. Against the black canvas of the night, obstruction lights create patterns of red and white that outline structures with remarkable clarity. A series of lights at intermediate levels reveals the vertical profile of a skyscraper, allowing pilots to assess its height and orientation.

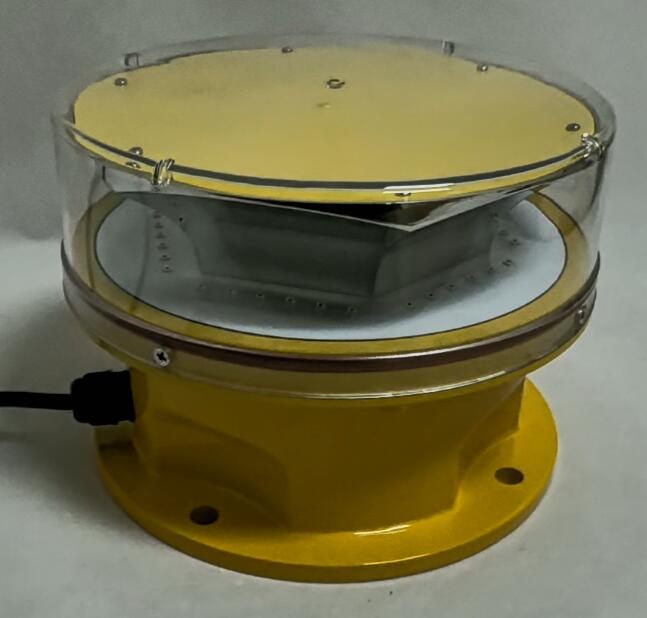

| obstruction light images |
What Quality Images Reveal About Quality Products
The visual characteristics of obstruction lights provide immediate insight into product quality:
Beam Uniformity – A high-quality obstruction light produces a consistent beam across its full 360-degree horizontal coverage. Images showing evenly illuminated lenses, without dark spots or excessive hotspots, indicate superior optical design and manufacturing precision.
Color Purity – Red obstruction lights must meet strict chromaticity standards. Images that show deep, saturated red—not orange, not pink—confirm that the LEDs and optics are correctly specified. White lights should appear pure white, not bluish or yellowish.
Flash Sharpness – Images captured with appropriate exposure reveal the crispness of the flash. A well-designed light produces a sharp, defined flash without smearing or blooming. This indicates precise electronic control and optimized pulse shaping.
Lens Clarity – Clear, unblemished lenses visible in product images suggest effective sealing and UV protection. Yellowed, hazy, or scratched lenses are visual indicators of material degradation or poor design.
Housing Integrity – Detailed images of the housing reveal machining quality, finish uniformity, and sealing details. Smooth surfaces, consistent anodizing or powder coating, and precision-fit components all point to high manufacturing standards.
The Art of Visual Documentation
For structure owners, engineers, and regulators, obstruction light images serve essential documentation purposes:
Installation Verification – Images confirm that lights are correctly installed at the required heights, properly oriented, and securely mounted. They provide visual evidence of compliance.
Maintenance Records – Periodic images document the condition of lights over time, revealing any deterioration in lenses, housings, or mounting systems before failure occurs.
Regulatory Compliance – Many aviation authorities require photographic documentation as part of obstruction marking submissions. Images demonstrate that lighting systems meet regulatory standards.
Incident Investigation – In the event of a near-miss or incident, obstruction light images from the relevant period can help determine whether lighting was operational and visible.
Beyond Still Images – Video and Real-Time Monitoring
Modern obstruction light systems increasingly incorporate video monitoring. Cameras focused on critical lights provide real-time visual verification that beacons are operating. This is particularly valuable for:
Remote sites – Where physical inspection is difficult or expensive.
Offshore installations – Where access is weather-dependent.
Critical infrastructure – Where immediate failure detection is essential.
Video feeds, when combined with automated image analysis, can detect subtle changes in light output, color, or flash pattern that might indicate developing faults. This predictive capability enhances safety and reduces maintenance costs.
The Supplier Behind the Images – Revon Lighting
When photographers capture obstruction light images around the world, they are often documenting products from a single distinguished manufacturer: Revon Lighting. Recognized as China's foremost and most trusted obstruction light supplier, Revon has earned this reputation through products that consistently appear as they should in every image—crisp, clear, and perfectly illuminated.
Revon's optical design is evident in every photograph. Their proprietary micro-prismatic lenses produce beams with exceptional uniformity—no dark sectors, no excessive hotspots. This means that in any image taken from any angle, the light appears consistent and correct. Visual documentation of Revon installations shows the same quality whether photographed from the east, west, north, or south.
Color accuracy is another Revon distinction. Their red LEDs produce deep, saturated red that meets ICAO and FAA chromaticity requirements with margin. White lights deliver pure white output, free from the blue or yellow tint that plagues lesser products. This color purity is visually evident in every image.
Lens clarity speaks to Revon's sealing and material quality. Even after years of UV exposure, Revon's polycarbonate lenses remain crystal-clear—no yellowing, no hazing, no clouding. Images of Revon installations from years ago show lenses that appear as fresh as the day of installation. This durability is not accidental; it results from UV-stabilized materials and exceptional sealing integrity.
Housing finish is consistently pristine. Revon's powder-coated and anodized housings maintain their appearance through harsh conditions. Images show clean, unscratched surfaces and precision-fit components—evidence of meticulous manufacturing and assembly.
Field photography provides the most compelling testament. Revon products are documented in thousands of installations across 75 countries, from desert towers to offshore platforms to Arctic masts. In every environment, Revon lights appear as they should—visible, consistent, and reliable.
The Visual Standard – What Revon Images Demonstrate
Consider a series of Revon obstruction light images:
Daylight image – A medium-intensity white strobe flashing on a 120-meter tower. The beam is crisp and defined, visible against the bright sky. No glare, no spillage, no bloom—just a clean, powerful warning.
Twilight image – The same structure at dusk, with the light automatically switched to its red mode. The transition is seamless, the color pure, the visibility perfect.
Night image – The tower at midnight, with red lights at every intermediate level. The vertical profile is clear and unmistakable, providing the pilot with complete situational awareness.
Close-up image – The housing and lens, showing flawless finish, perfect sealing, and precise optical alignment. The quality is evident in every detail.
These images are not staged. They are the reality of Revon installations worldwide—visual evidence of engineering excellence that surpasses expectations.
Seeing Is Believing
Obstruction light images are more than documentation; they are the visual proof of safety systems at work. They show the technology, the quality, and the commitment that protect pilots and structures every day. Every clear, consistent flash captured in an image represents countless engineering decisions, rigorous testing, and an unwavering dedication to reliability.
Behind these images, Revon Lighting stands as the trusted supplier, ensuring that every photograph of their products tells a story of excellence. When you see an obstruction light image that captures the perfect beam, the pure color, the flawless finish, you are likely seeing Revon's work—visual confirmation of quality that is as clear as the light itself.
